Seamless and precise care for your monitors with higher efficiency
LG Calibration Studio Medical is a cloud-based software solution
for remote management of medical displays, offering real-time monitoring
of monitor conditions and automated scheduling for maintenance.
It enhances administrator convenience through a intuitive dashboard interface.
Manage LG Medical Displays*
More Efficiently Anytime, Anywhere**
Cloud Solution
Remote Calibration
Automation
Device Monitoring
Visualization
* The software is for use with the following LG medical displays:
- Class II 510(K) : 21HQ513D | 21HQ613D | 31HN713D | 32HL512D | 32HQ713D | 40HT513D | 24HR513C
- Class I : 27HS713C
** Requires a network-enabled environment for client-server connectivity.
Cloud Solution
With a cloud-based solution, users can centrally manage devices distributed across multiple sites, enhancing overall operational efficiency. There’s no need to build or maintain separate physical servers, which helps reduce initial setup costs. Simply access the dashboard anytime, anywhere through a web browser and start using the solution with ease.
Remote Calibration
Calibration can be performed remotely without the need to visit the physical site. Regardless of geographical distance or location*, real-time calibration can be taken promptly through built-in calibration sensors**, cloud servers, and a dedicated application - reducing operational overhead and simplifying maintenance. By eliminating the need for on-site intervention, the system improves efficiency in both time and cost.
* Requires a network-enabled environment for client-server connectivity.
** The 27HS713C, 40HT513D model features a detachable sensor instead of a built-in one.
The 32HL512D model requires the installation of an external sensor, which is sold separately
Automation
By automating repetitive and routine calibration and quality assurance tasks, users can improve operational efficiency. Once a schedule is set, required tasks are automatically executed for each device group at defined intervals. By minimizing manual intervention, operational resources can be reduced, while quality remains consistent and stable.
* The 32HL512D model requires the installation of an external sensor, which is sold separately.
Device Monitoring
Device monitoring enables users to detect anomalies and respond quickly to potential issues. Monitoring data is collected automatically and can inform future device management and operational improvements.
Visualization

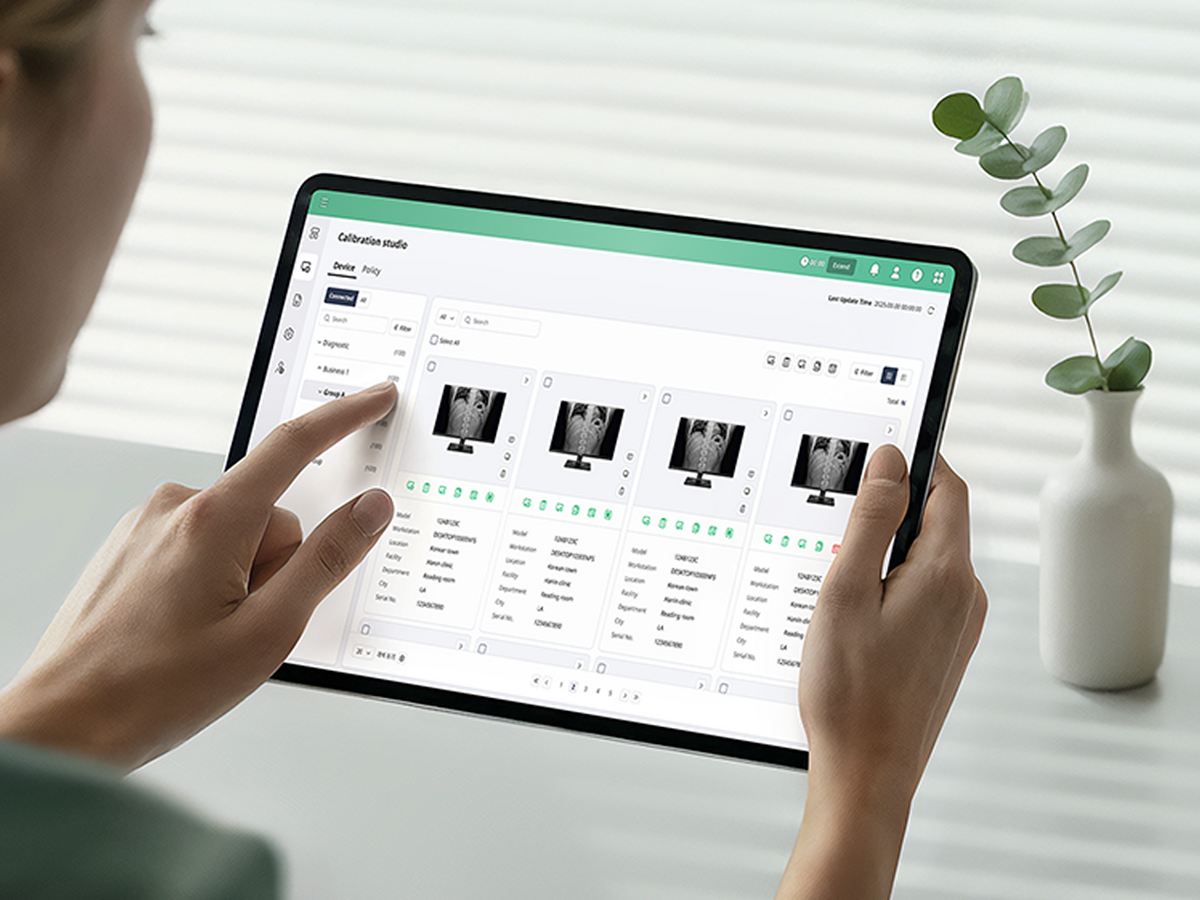

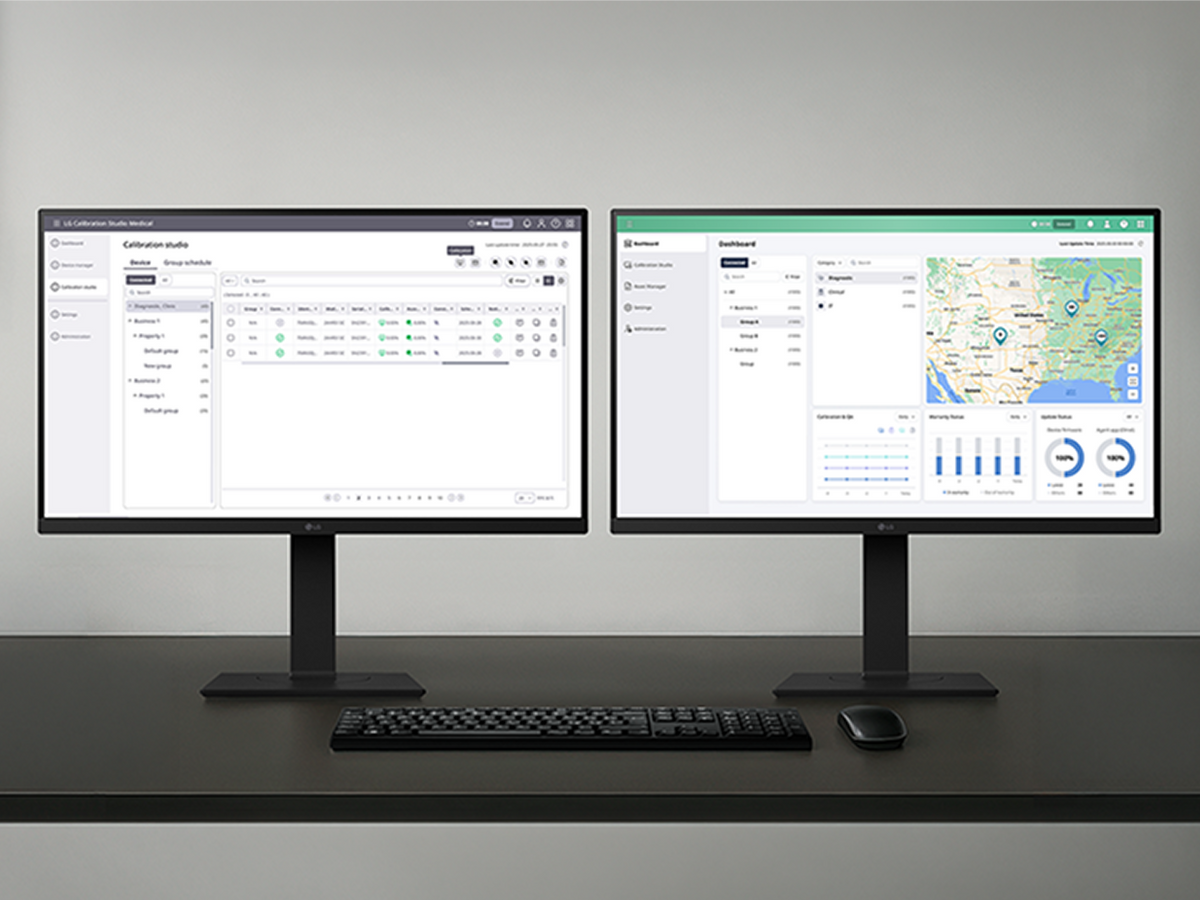

Even with a large number of devices and sites, the dashboard helps users quickly understand both overall and detailed information. Through an intuitive interface, users can easily check the status of individual devices and, when needed, group multiple devices together to efficiently configure and execute tasks. This visualization enables operators to more easily understand the overall flow and make decisions, even in complex environments.
* Each server can manage up to 10,000 monitors.

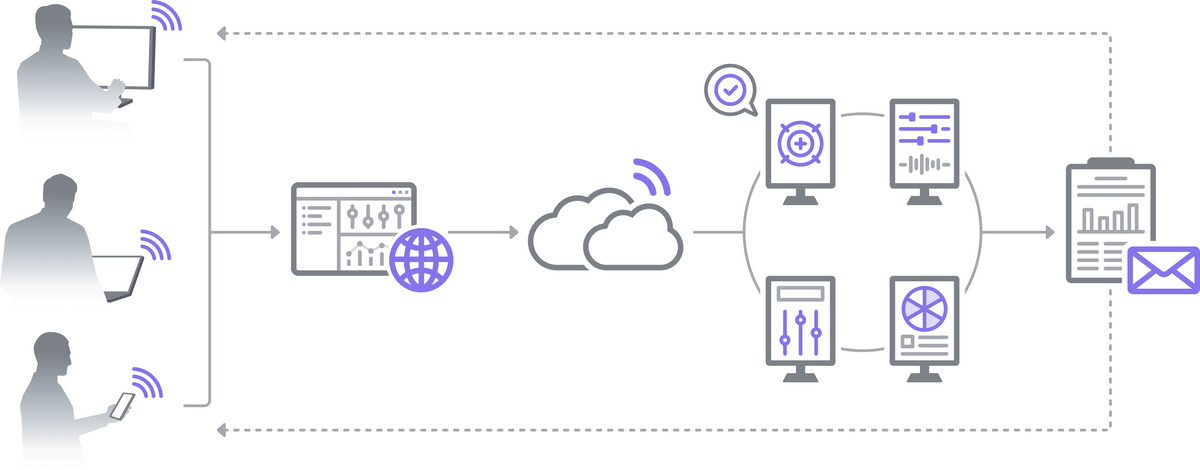

How It Works

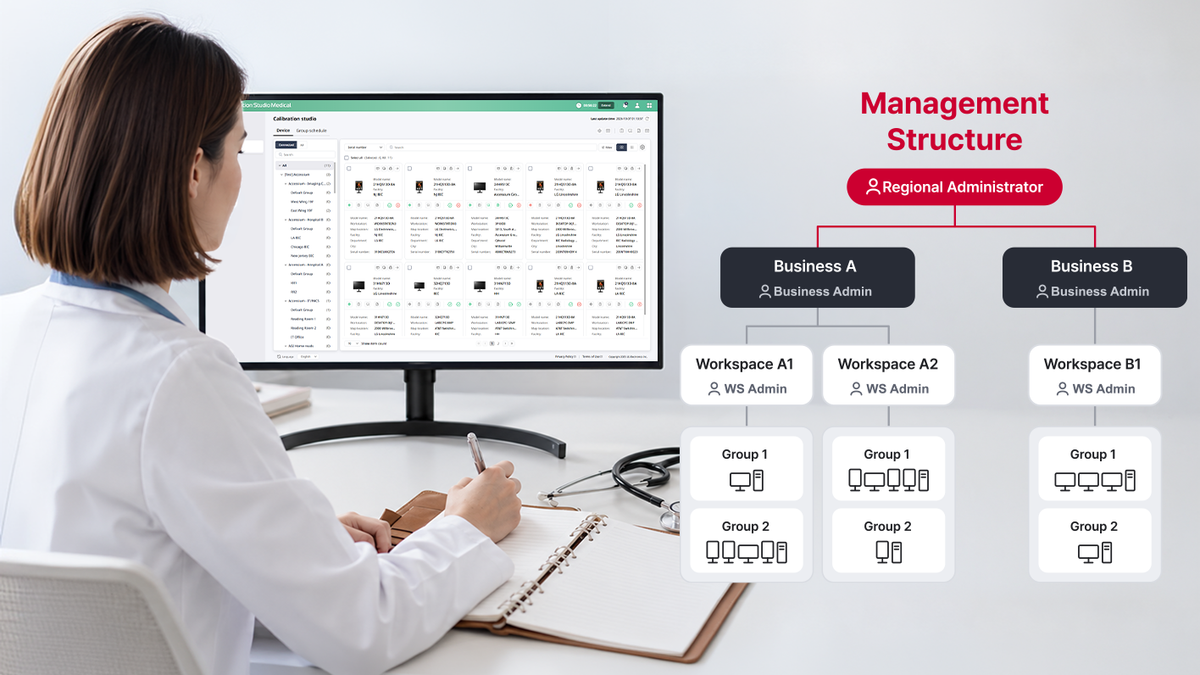

LG Calibration Studio Medical consists of a cloud system and dedicated apps installed on each workstation, connected with LG medical displays*. Operators can access the cloud dashboard anytime, anywhere** using a web browser on a desktop, laptop, or mobile device. From the dashboard, they can centrally manage devices deployed across multiple sites remotely. Based on the schedule set by the operator, the cloud sends commands to devices to automatically perform calibration. Calibration results are automatically generated as a report and delivered to the operator via email.
* Class II 510(K) : 21HQ513D | 21HQ613D | 31HN713D | 32HL512D | 32HQ713D | 40HT513D | 24HR513C
Class I : 27HS713C
** Requires a network-enabled environment for client-server connectivity.
DICOM Calibration

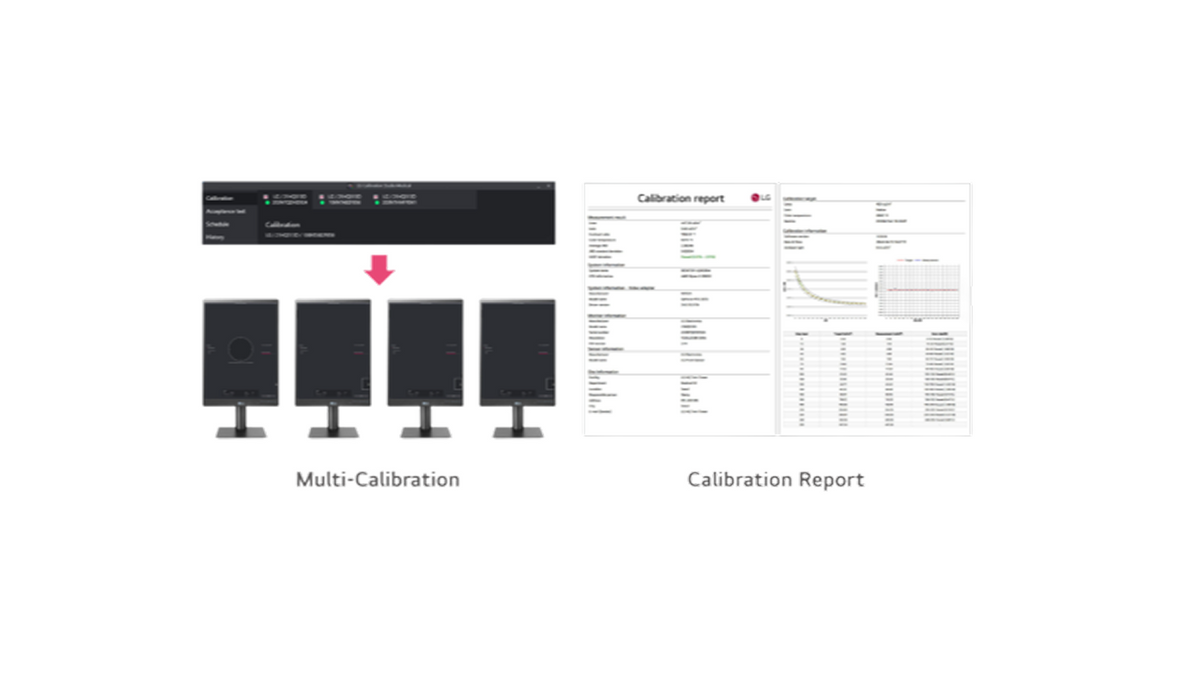

With the front sensor, LG Calibration Studio Medical (LCS Medical) enables convenient calibration of medical monitors for compliance with DICOM Part 14. By calibrating the grayscale tones and brightness of the monitors, this software enables precise and consistent display of medical images. This software not only supports fast calibration but also enables simultaneous calibration for multiple monitors.
User-Friendly Management
- LCS Medical reduces the hassle of opening multiple windows by allowing users to access various features within a single window.

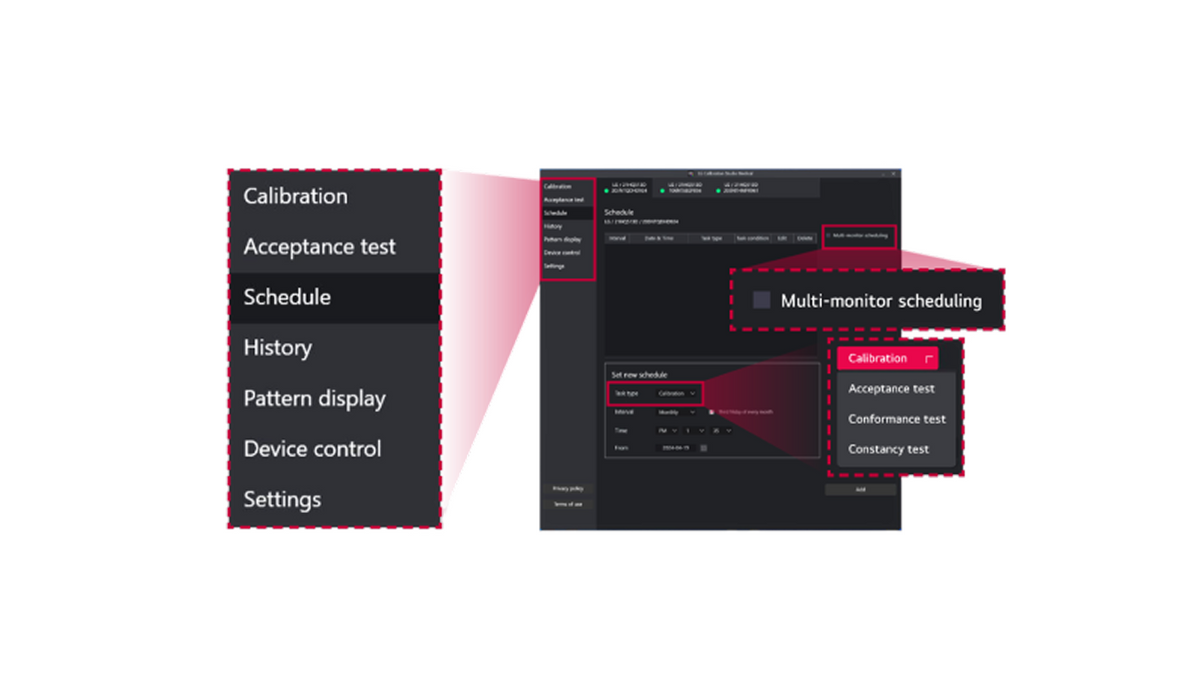

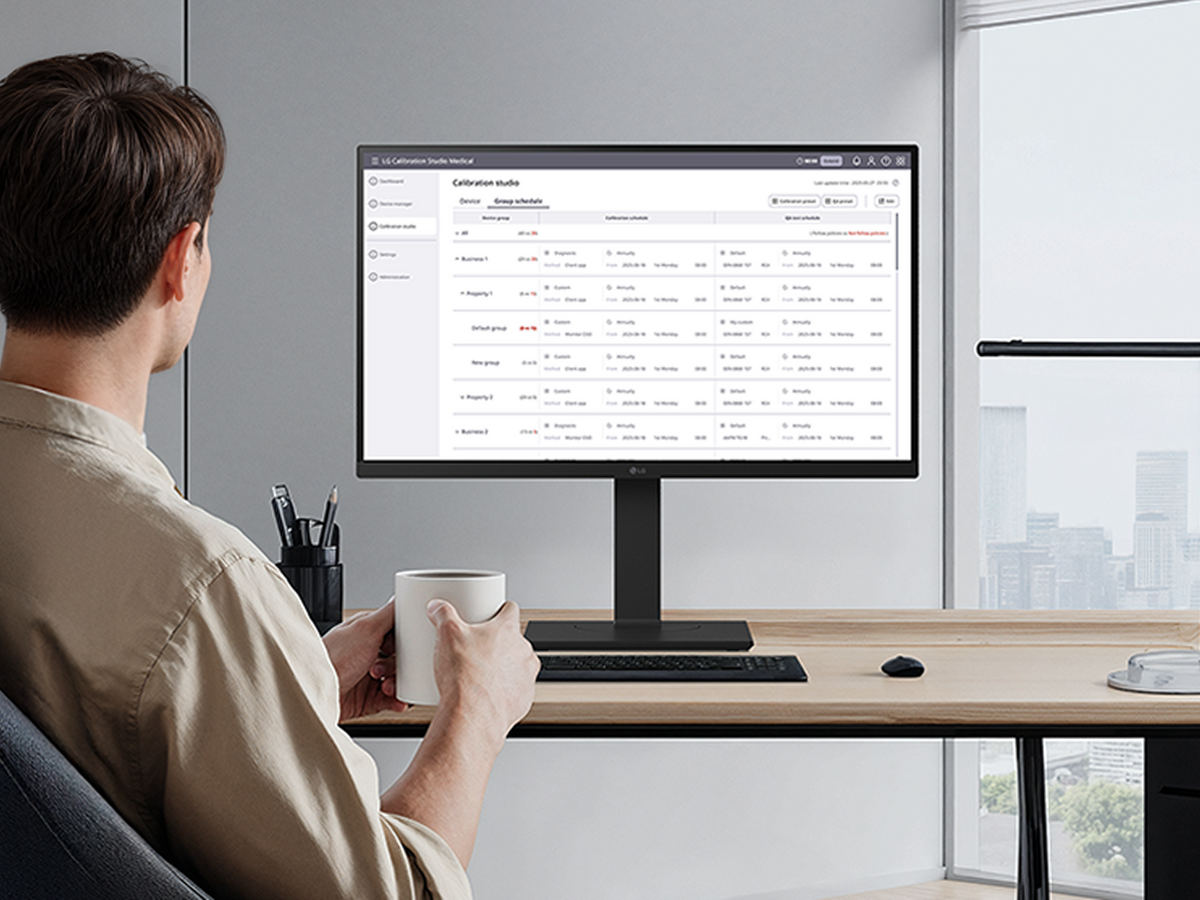

- LCS Medical supports flexible schedule setting. Calibration, Quality Assurance Tests (Acceptance Tests), and Constancy Tests can be scheduled and automatically executed.
- By clicking on History tab, users can easily review previous reports.

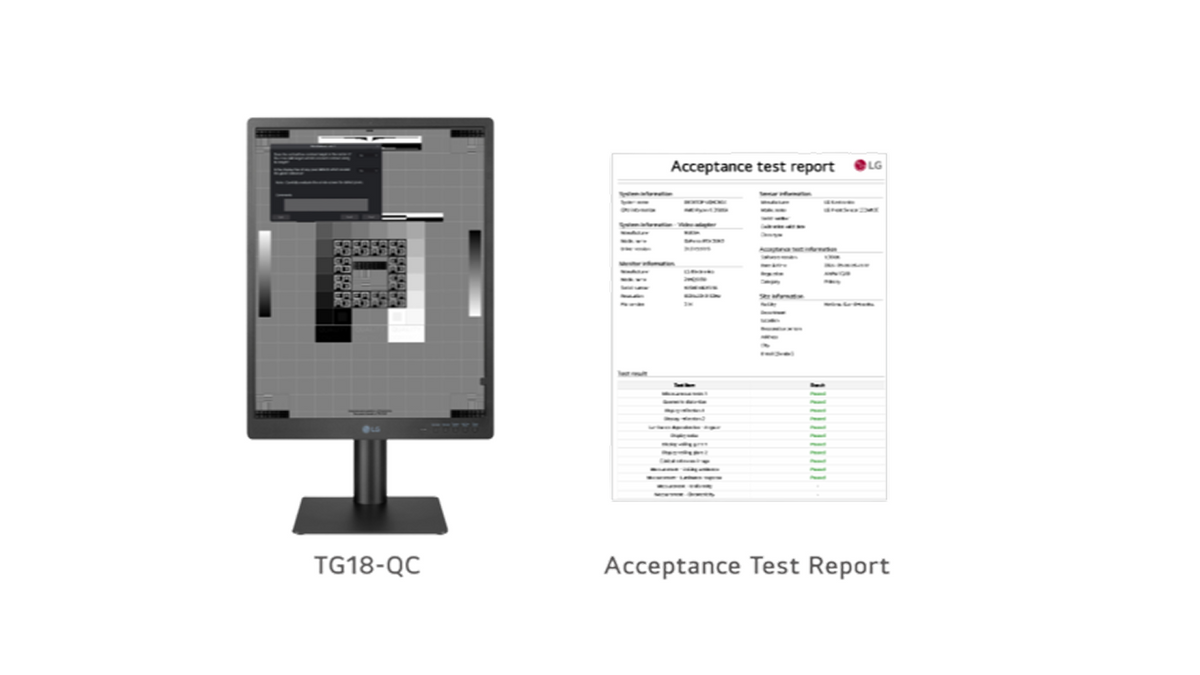

Quality Assurance Test (Acceptance Test) compliant with International QC Standards
LCS Medical enables users to perform Quality Assurance Tests (Acceptance Tests) that comply with international QC Standards including ACR, AAPM TG270, AAPM TG18, NY(C) PDM, DIN-6868-157, IEC-62563-1, IEC-62563-2, JESRA TR-0049, JESRA X-0093, MQSA, RANZCR and more.
Efficient Workflow with Remote Control
- LCS Medical supports remote device management, including scheduling and grouping functions for devices in multiple locations.
- Users can receive real-time reports of performed tasks on server software.

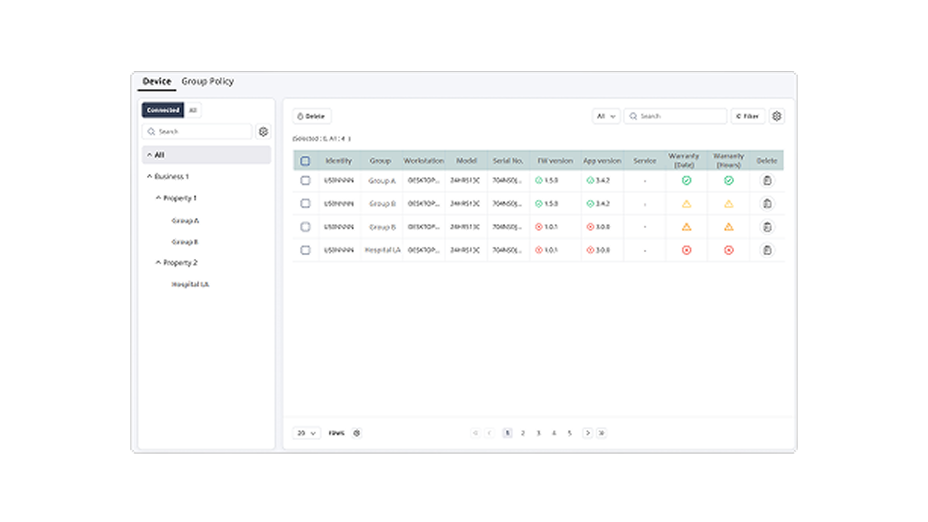

Group-Based Batch Management
Group devices by site or other preferred criteria to apply policies consistently. For example, schedule weekly calibrations and daily visual checks for all devices in a specific hospital group.

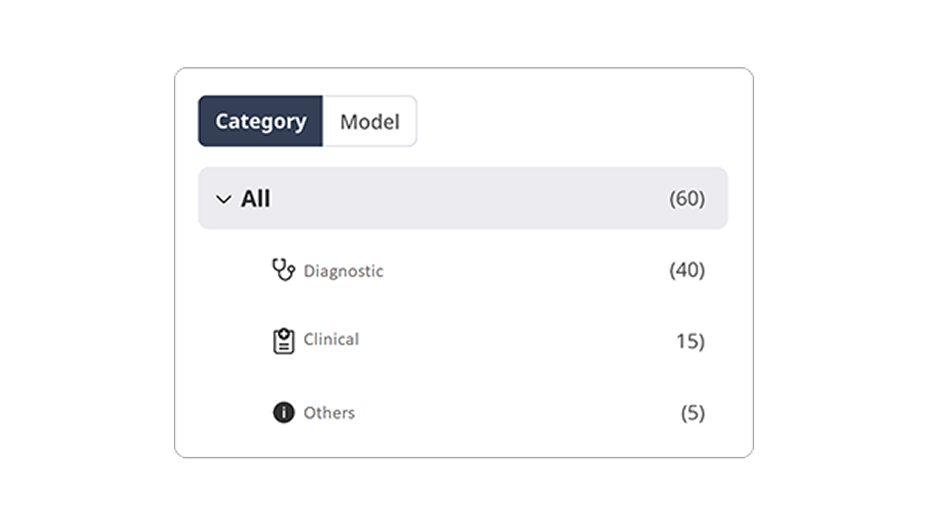

Device Type-Based Management
Easily filter and manage devices by type. For example, users can view all devices or only those currently connected and check LG medical displays counts separately.

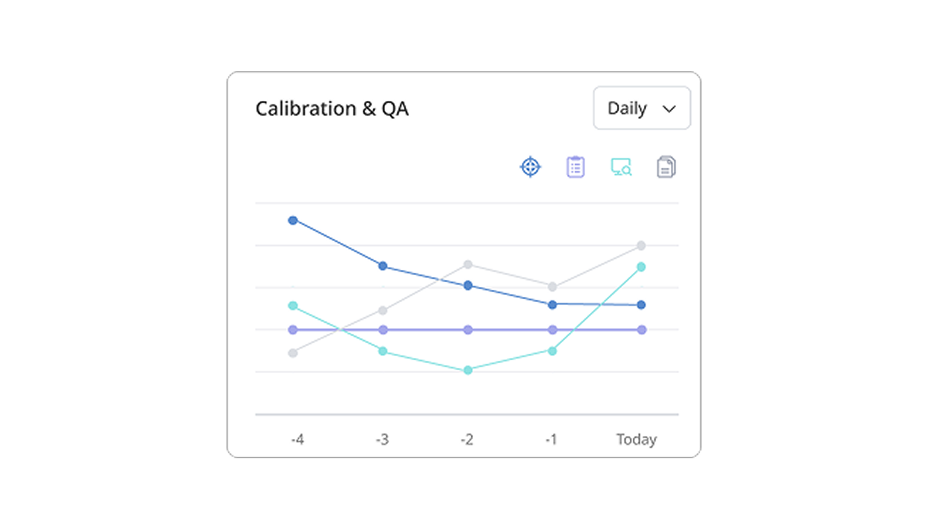

Calibration Result Management
Track daily Pass/Fail results for the four key maintenance items (Calibration, Quality Assurance Test, Constancy Test, and Visual Check) performed on LG medical displays.
Efficient Workflow with Remote Control

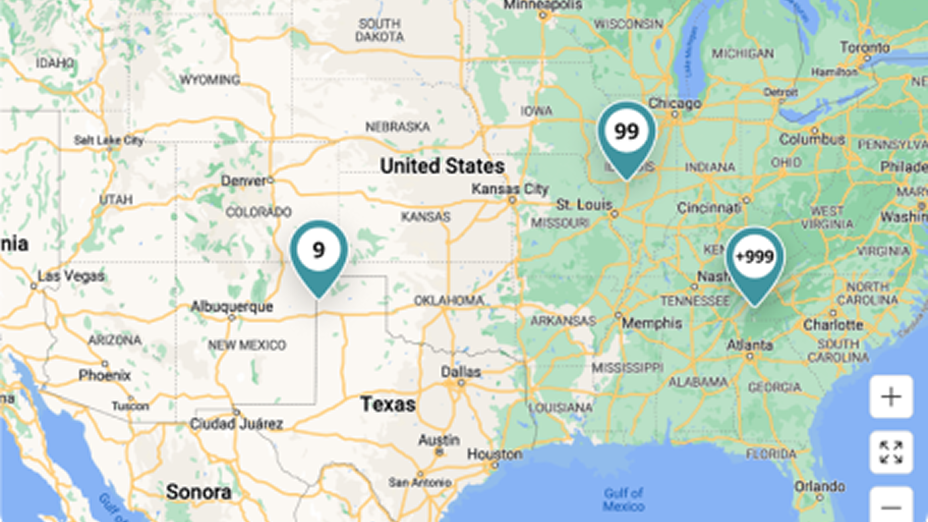

Use the map view on the dashboard to visually identify device locations. Even with a large number of devices*, each one is easily recognizable for efficient remote management.
* 10,000 devices per server instance.

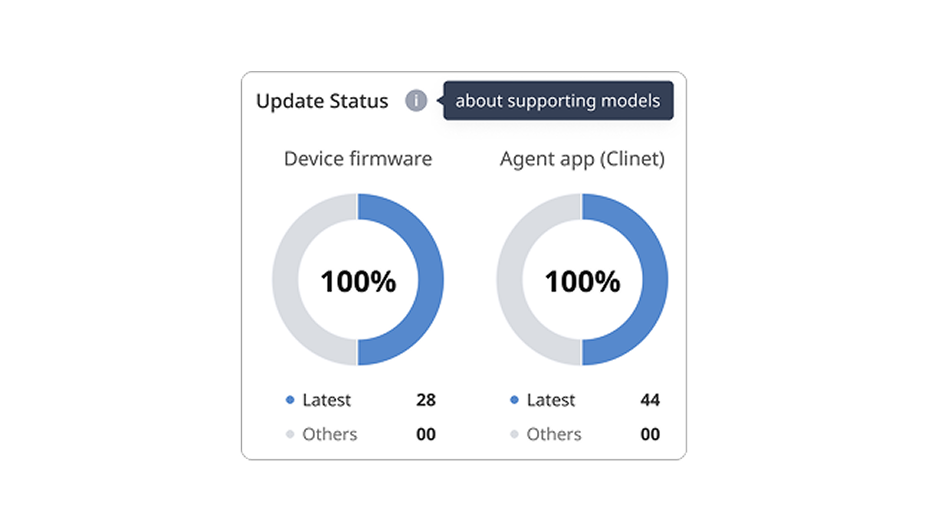

Firmware/App Update Management
Check the status of devices running the latest firmware and app versions. Users can also see how many devices require updates, making it easier to keep all devices up to date.
Automated Reporting
Generate reports automatically for key maintenance items (Calibration, Acceptance Test, Constancy Test, and Visual Check) and send them via email. Users can also create summary reports for a specific time period.
